| Audio Performance | - |
|---|---|
Residual Output Noise |
–100dBu (MAIN OUT, MAIN fader: MIN) |
Equivalent Input Noise |
-127dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
Total Harmonic Distortion |
0.01% or less (MIC IN to MAIN OUT, Max input level, +10dBu, 1kHz, GAIN min.)0.004% or less (MIC IN to MAIN OUT, nominal input level, +4dBu, 1kHz, GAIN min.) |
Frequency Response |
20Hz to 30kHz (+0.5/–1.0dB: Analog) |
Crosstalk |
–80dB, channels/input and output (1kHz, PAN fully counter clockwise/fully clockwise) |
Maximum Gai |
74dB (MIC to MAIN OUT) |
Model 16 16-Track Analog Mixer with Digital Recorder & USB Audio Interface
$1,299.00
Sale price
$1,299.00
Regular price
Skip to product information
Model 16 16-Track Analog Mixer with Digital Recorder & USB Audio Interface
$1,299.00
Sale price
$1,299.00
Regular price

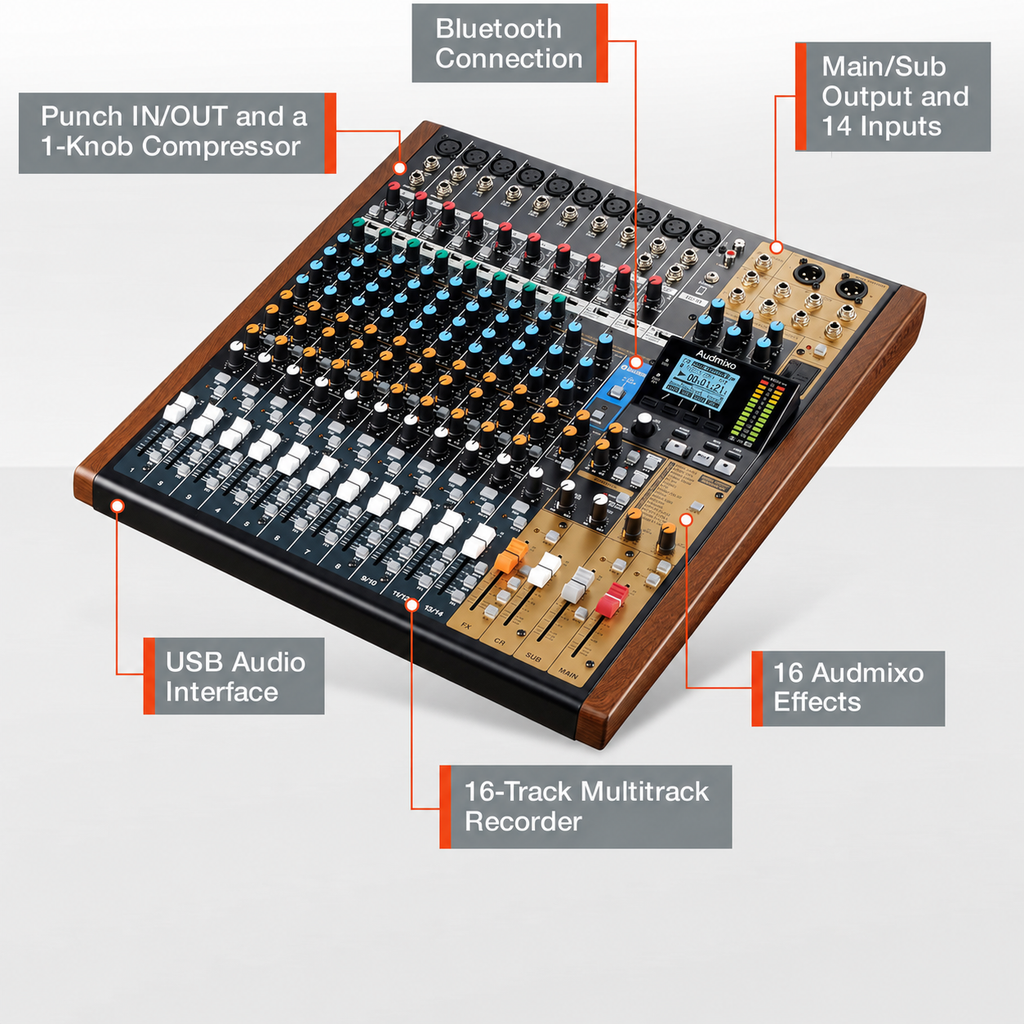

©Key Features
- 16-track multi-track recorder (WAV, up to 48kHz/24-bit) to SD, SDHC and SDXC cards (Class 10 or higher required)
- Punch in/out capability (up to 8 tracks simultaneously)
- Built-in USB Audio Interface to send/receive (16-in/14-out) audio data to/from DAW
- 14 inputs (10 Monaural XLR/TRS balanced and 2 Stereo-paired TRS balanced)
- 10 mic Pre-amps utilizing Audmixo Ultra HDDA Mic Pre-amp technology (CH 1 thru 8)
- Pre-amp Gain Controller with Signal/Over-load Indicator (CH 1 thru 12)
- Input Mode switch (LIVE/USB/MTR) per input channel
- 1-knob compressor (CH 1 thru 8)
- Dedicated Settings Panel application with Meter bridge (Added in V.1.40)
©SPECS
- Dimensions: 430(W) x 112.9(H) x 463(D) mm
- Weight: 7.0 kg
©What's in the box
- Model 16 × 1
- Power cord × 1
- Owner's Manual (including warranty) × 1

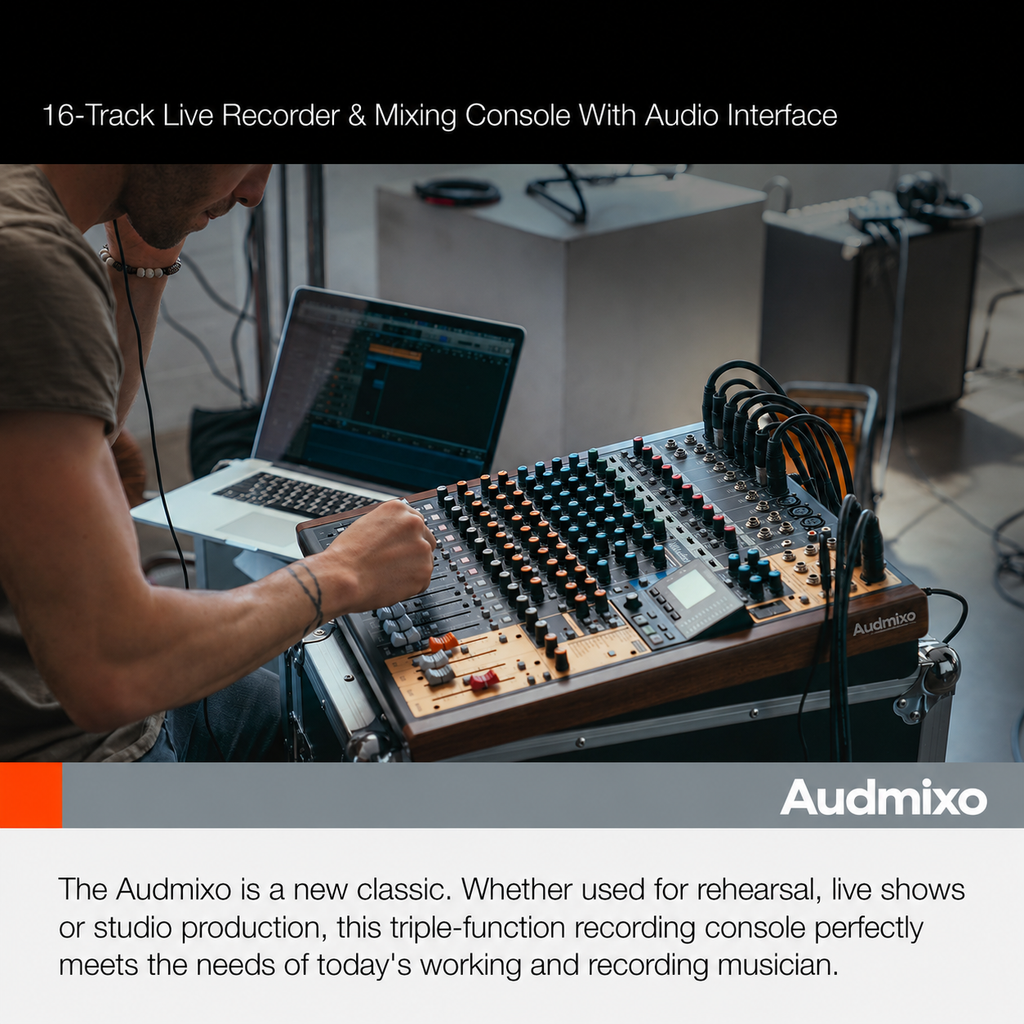

Take your recording and live production workflow to the next level with a versatile 16-track digital mixer and recorder designed for musicians, content creators, studios, and live sound engineers.

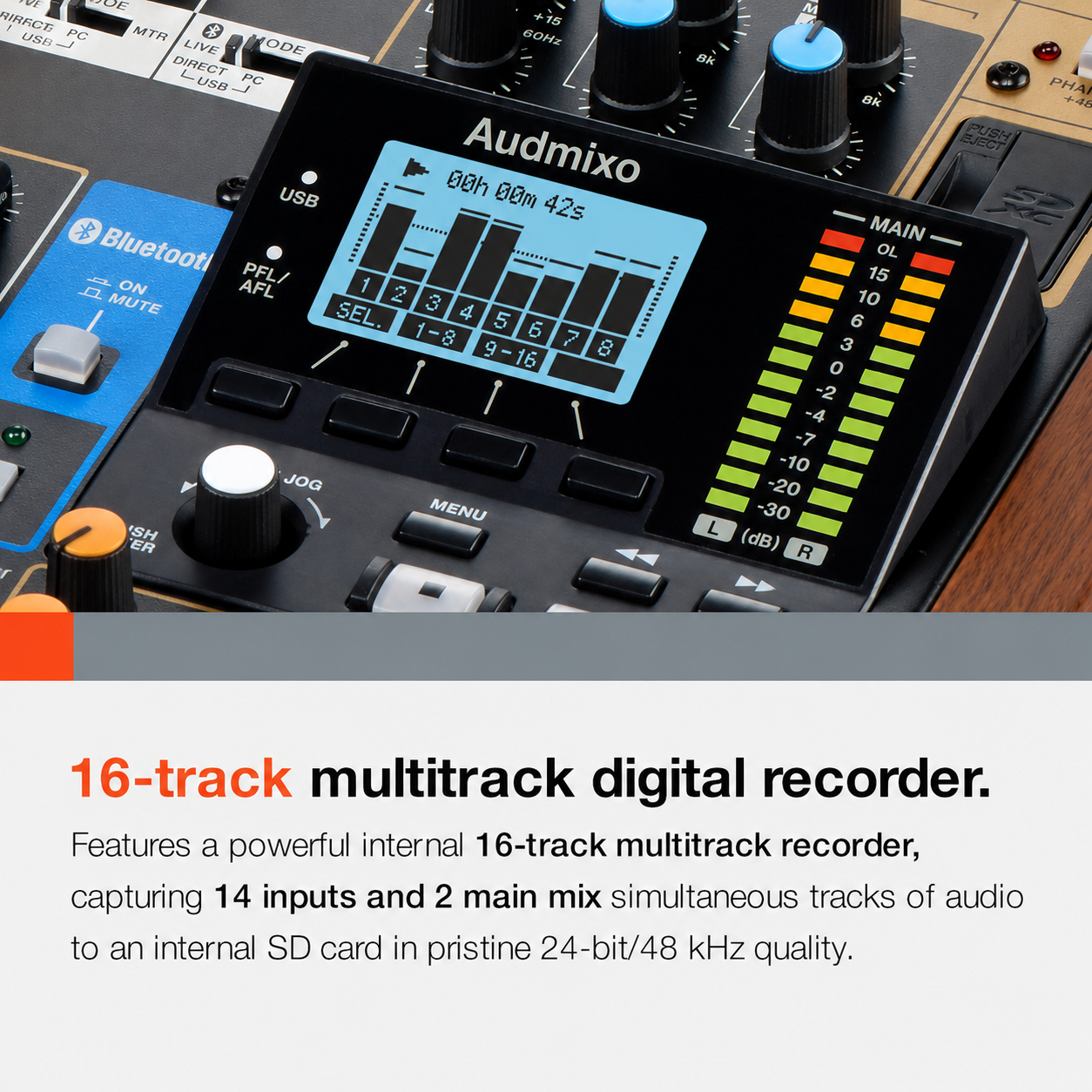

Capture up to 16 tracks simultaneously in high-resolution WAV format (up to 48kHz/24-bit) directly to SD, SDHC, or SDXC cards, providing reliable standalone recording without the need for an external computer.
Advanced punch-in and punch-out functionality allows up to 8 tracks to be recorded simultaneously, making overdubs, corrections, and multi-session production fast and efficient.
The built-in USB audio interface enables seamless integration with your favorite DAW, supporting 16-channel input and 14-channel output for flexible recording, editing, and mixing workflows on both Windows and macOS systems.
Featuring 14 versatile input channels, including 10 balanced XLR/TRS mono inputs and 2 stereo-balanced TRS input pairs, the mixer easily accommodates microphones, instruments, keyboards, and other professional audio sources.
At the heart of the system are 10 premium microphone preamps powered by Ultra-HDDA technology, delivering exceptional transparency, low-noise performance, and wide dynamic range for crystal-clear recordings and live sound reinforcement.
Whether you're recording a full band, mixing live performances, producing podcasts, or creating content for streaming platforms, this all-in-one mixer offers the flexibility, reliability, and sound quality demanded by modern audio professionals.

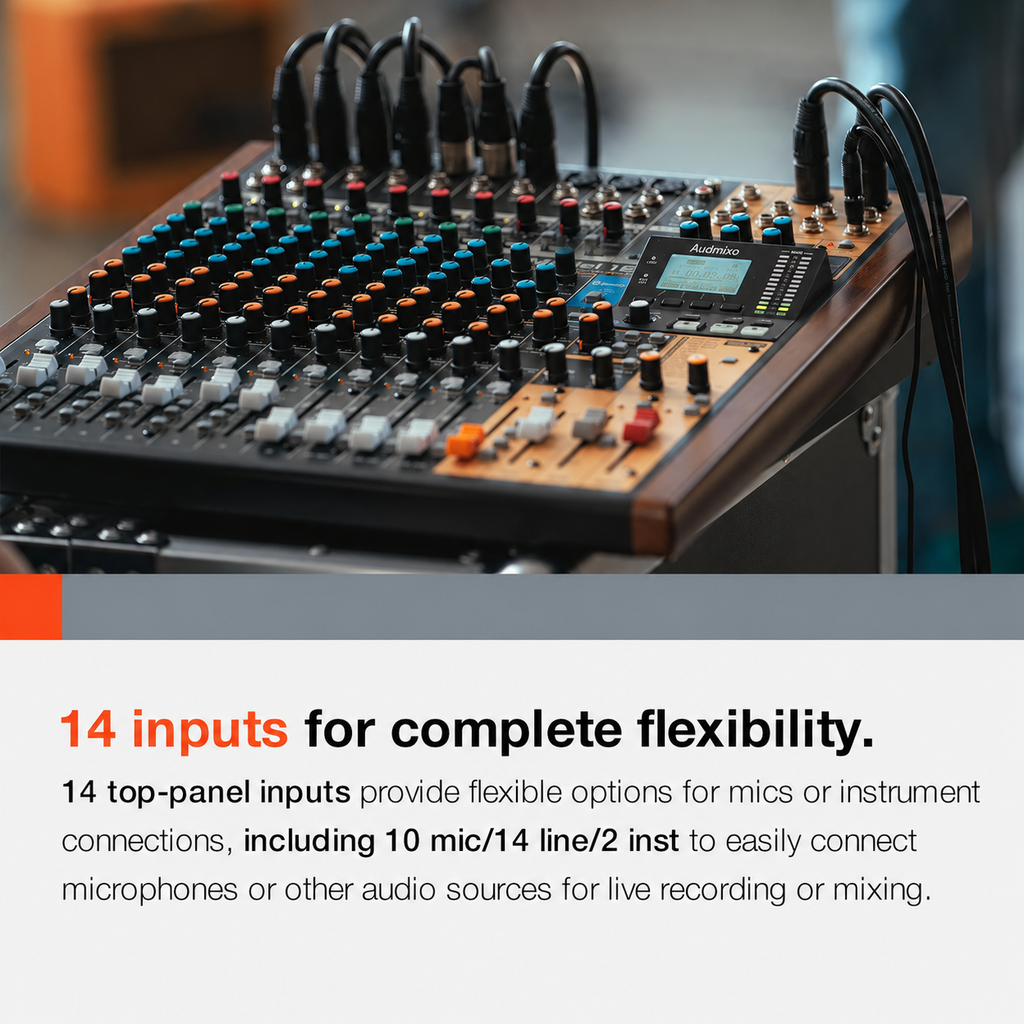

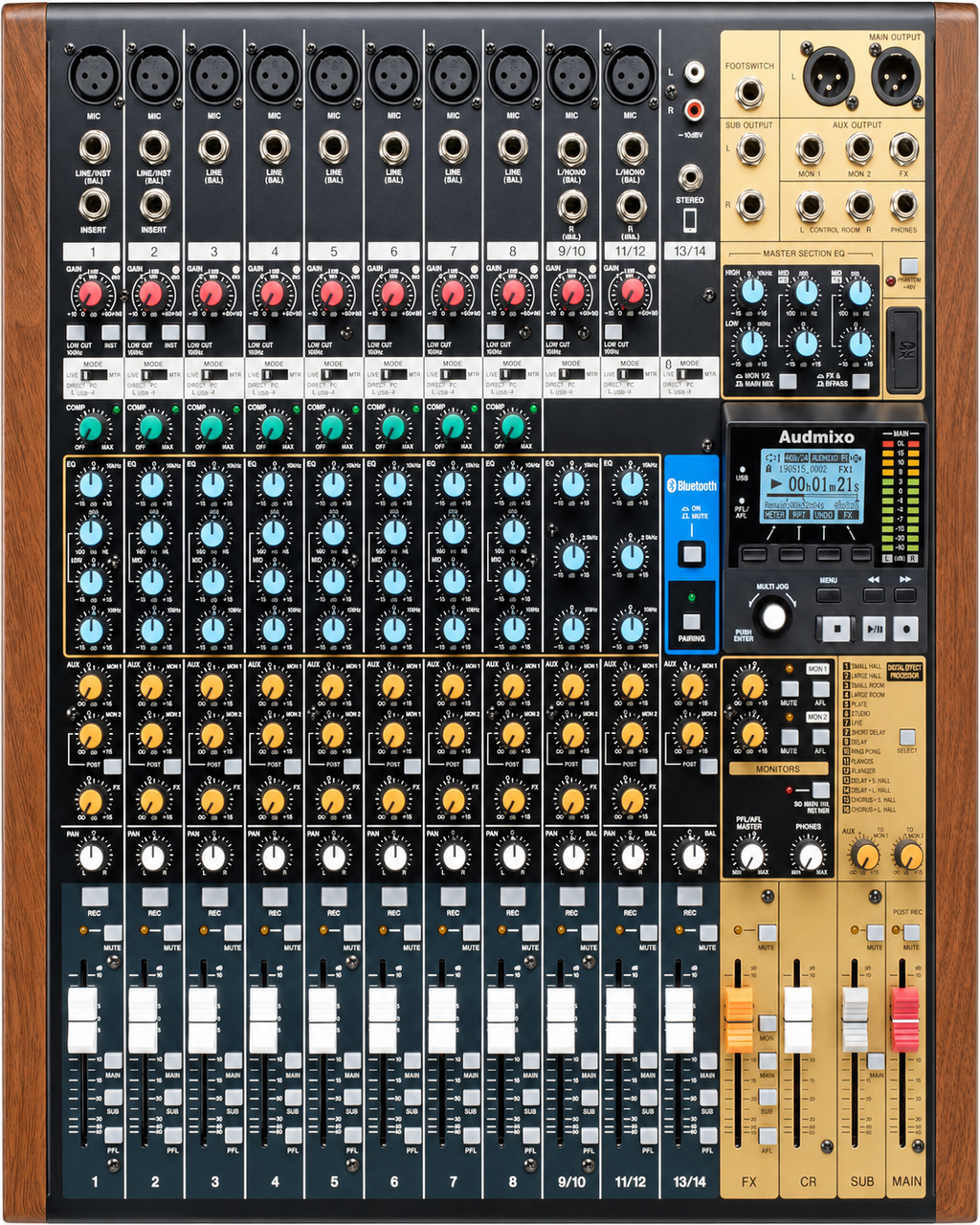

14 Inputs for Complete Flexibility
14 easy-to-access top-panel inputs provide flexible options for microphones or instrument connections, including 10 Mic/14 Line/2 Inst to allow easy access for connecting microphones, instruments or other audio sources for live recording or mixing. A Bluetooth 5.0 enabled Stereo Input Source Channel also provides stereo RCA and 1/8" Stereo (selectable) jacks for streaming audio device level control.

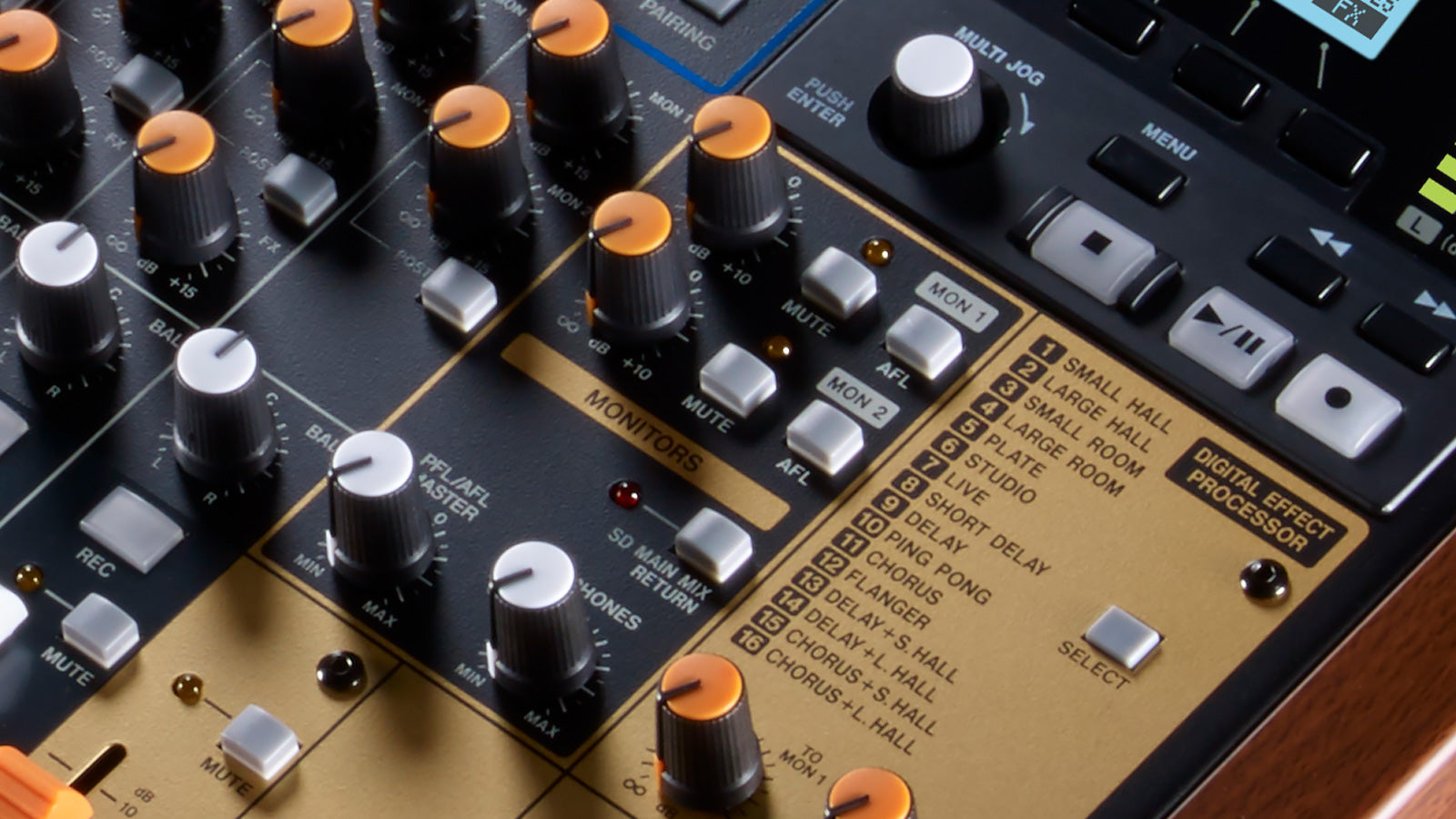

Maximum Audio Routing Possibilities and Monitoring
3 Aux bus (MON1, MON2[pre/post], FX) and PFL Listen round out the Model 16's pro-level signal path routing options. A Sub bus provides an additional stereo lineout source to the master SEND section.
3 AUX Outs let you route the audio signal for stage monitoring, or to external gear such as outboard effects, signal processors or headphone mixes. And the Footswitch control jack provides additional monitoring and control features.

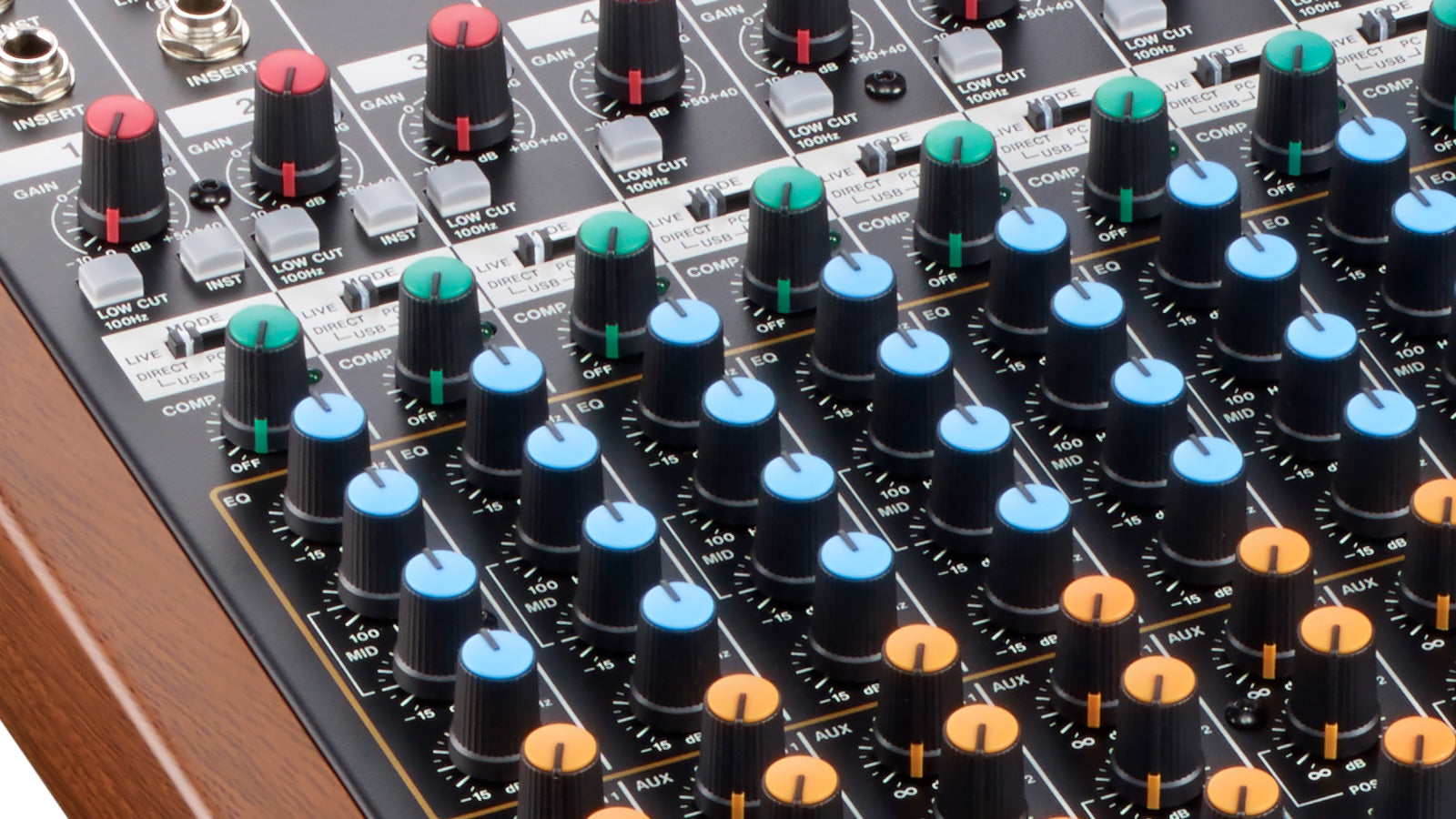

Professional Channel Strip Control Features
A tactile Gain knob tops each channel for precise tweaking of input levels. A push-button Lo-Cut filter and three-position Input Selector (Live/PC/MTR) facilitate quick and precise control of input source signals. A 1-knob inline Compressor is available on inputs 1-8 as is a mid-range sweepable 3-band EQ.

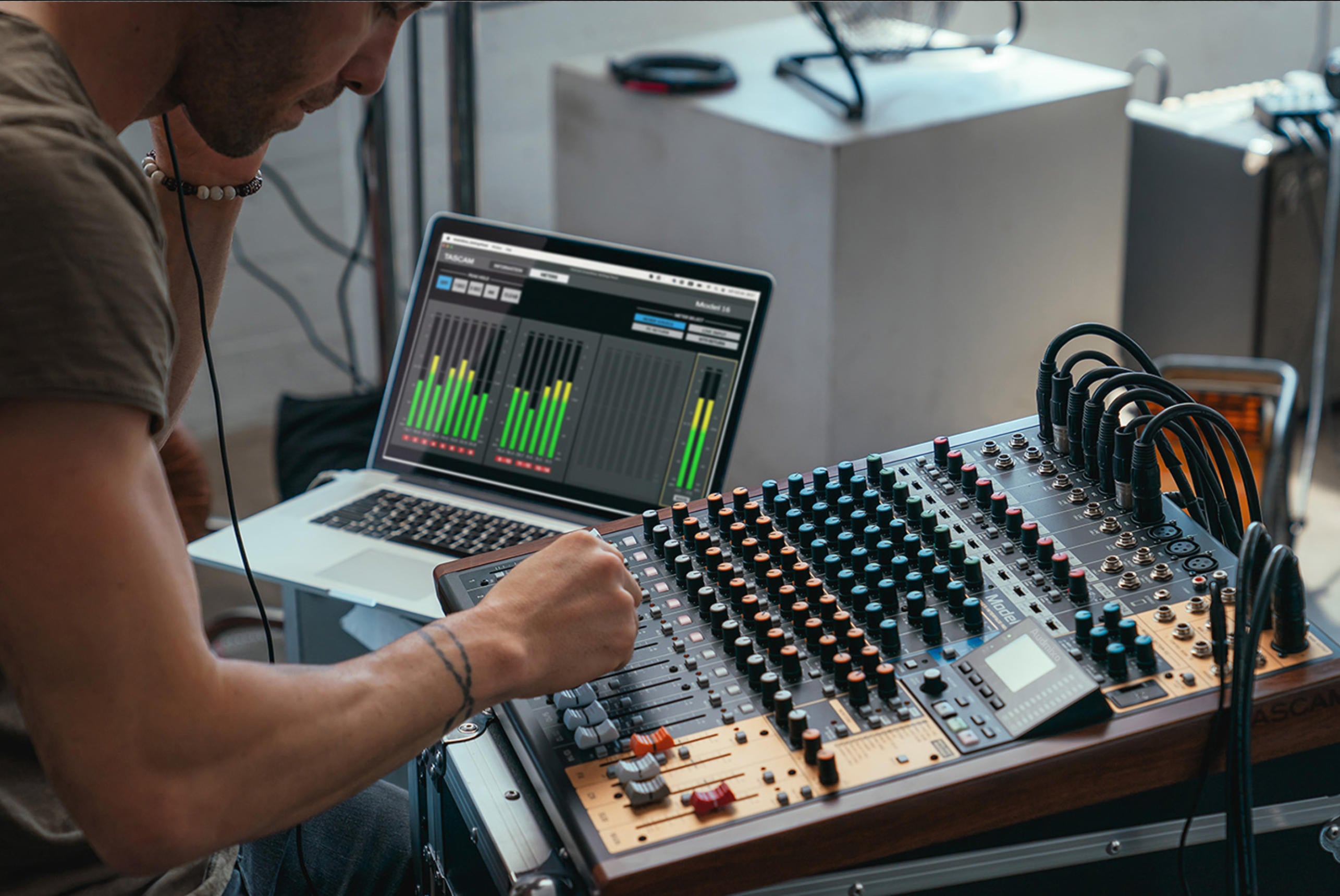

Monitor Your Signal Virtually (Added in V1.40）
With the Model Mixer Settings Panel app, users can take advantage of a digital meter bridge across by connecting the Model 16 via USB to a PC or Mac. Set peak hold times, monitor the input, MTR or USB signal all while being able scale the GUI from a small window to full screen. Take it a step further by porting the app from your computer to a dedicated monitor of your choosing.
