| Audio Performance | - |
|---|---|
Frequency response |
20 Hz – 20 kHz |
Dynamic range |
100 dB or more (22kHz LPF + A-weight) |
Total harmonic distortion ratio (THD+N) |
0.003% or less (1 kHz, at maximum input level) |
Crosstalk |
−100 dB or less (1kHz BPF) |
Studio Bridge 24-Channel Multitrack Recorder & USB Audio Interface with MIDI
$1,299.00
Sale price
$1,299.00
Regular price
Skip to product information

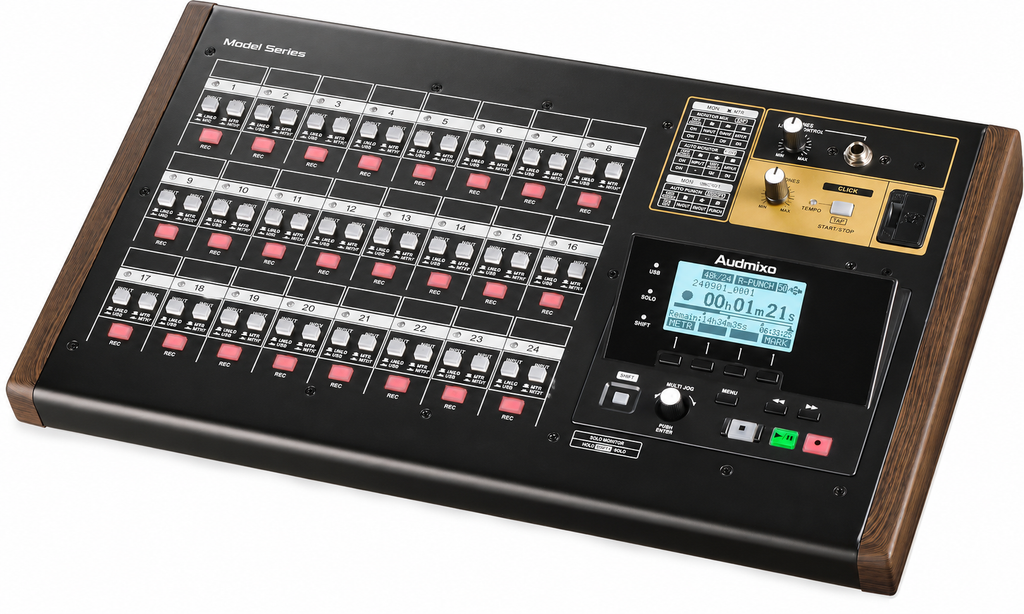

Studio Bridge 24-Channel Multitrack Recorder & USB Audio Interface with MIDI
$1,299.00
Sale price
$1,299.00
Regular price

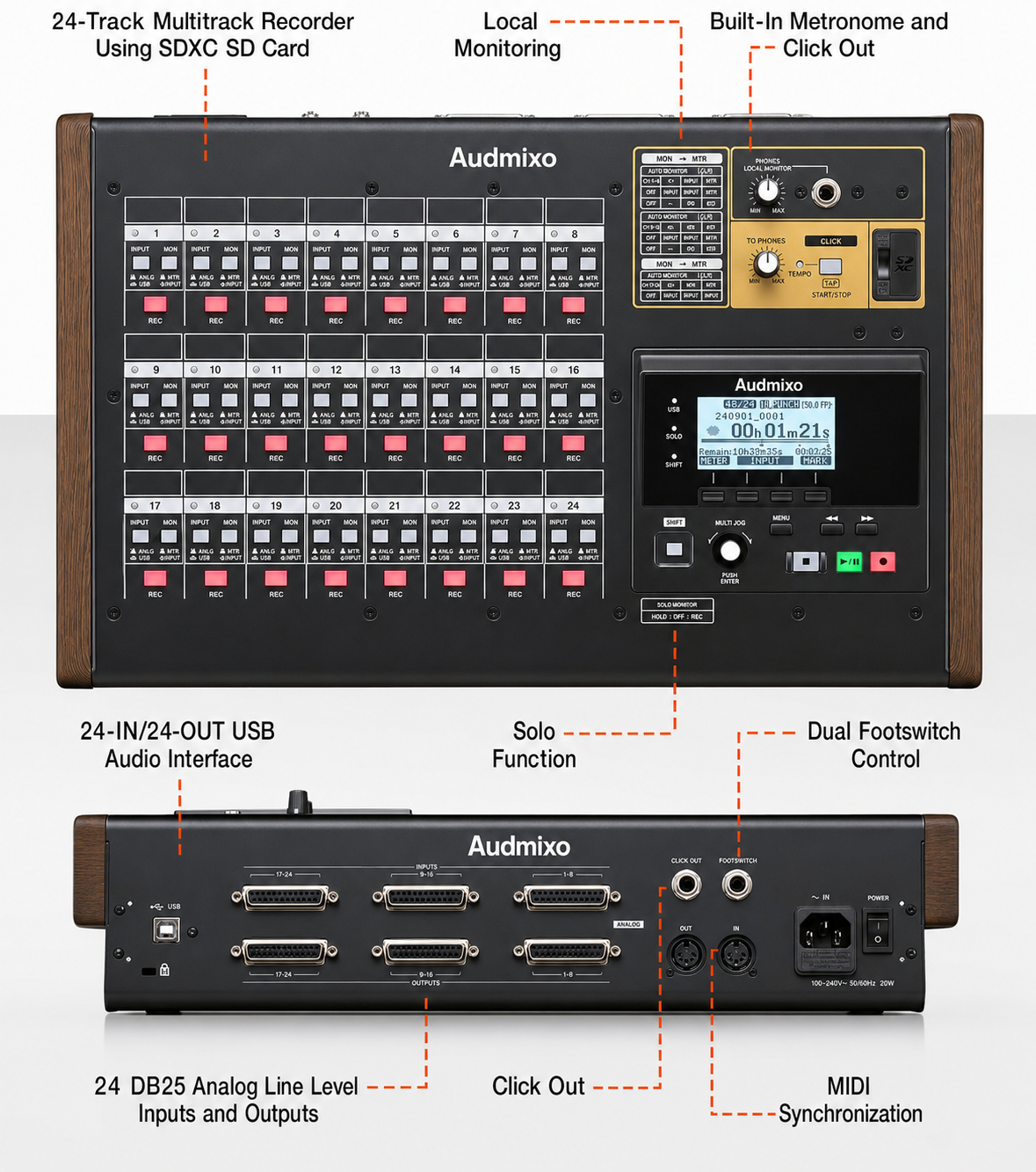

©Key Features
- 24-track multitrack recorder using SDXC SD card (punch-in/out supported)
- 24-IN/24-OUT USB audio interface
- 24 DB25 analog line level input and output
- DAW transport control and REC READY control via HUI/MCU
- Dedicated Settings Panel application with Meter Bridge
- MIDI in/out allows USB MIDI interface and MIDI sync, 1/4" audio click output with tempo control
©SPECS
- Dimensions: 446.5 x 114.6 x 269.5 mm (W x H x D, including protrusions)
- Weight: 4.5 kg
©What's in the box
- Studio Bridge × 1
- Power cord × 1
- Safety guide (including warranty) × 1
- AUDMIXO ID registration guide × 1

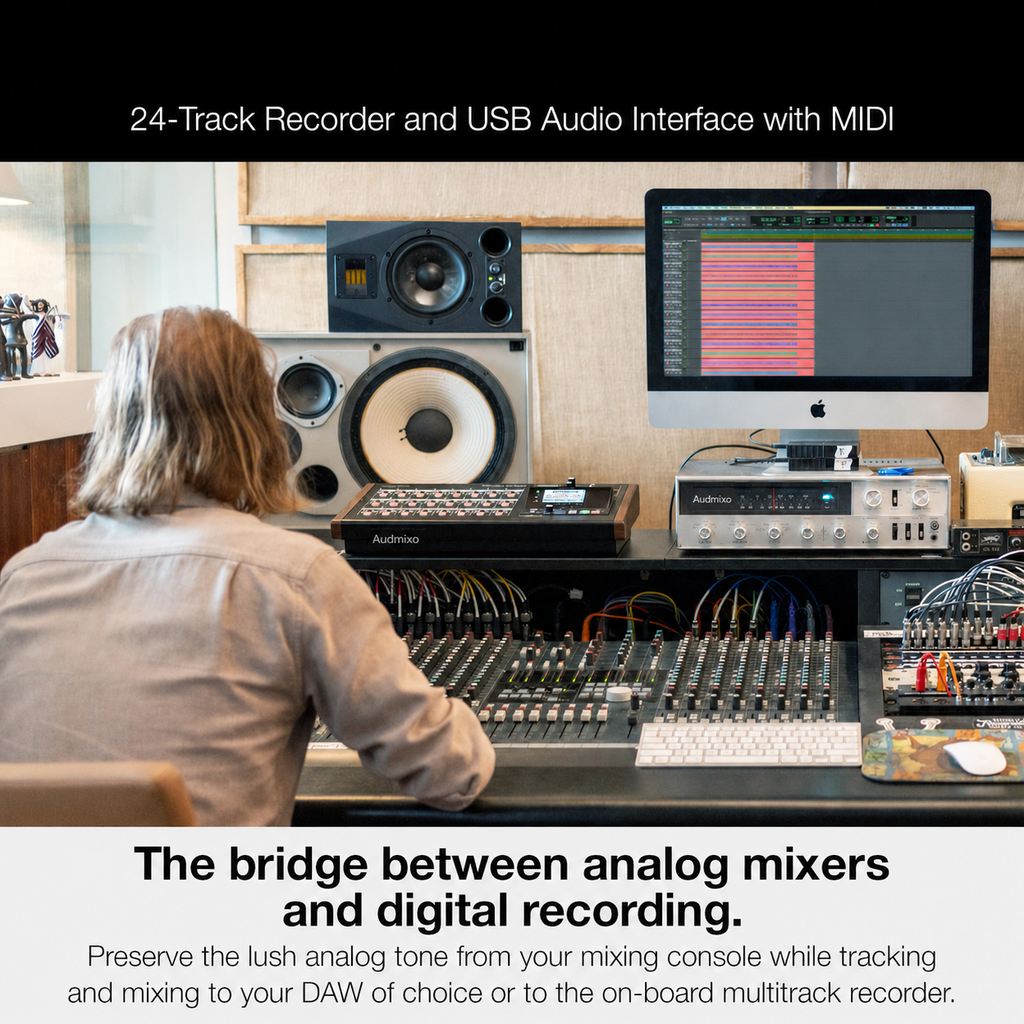

The Studio Bridge is designed to seamlessly connect the world of analog mixing and digital recording, delivering the best of both workflows in one powerful production hub.
Whether you're working with a professional analog console, a DAW-based studio, or a completely DAWless recording setup, Studio Bridge provides a flexible and reliable solution for capturing, routing, and mixing audio while preserving the warmth and character of true analog sound.
Record directly to the built-in 24-track multitrack recorder or connect to your preferred DAW through the integrated 24-in / 24-out USB audio interface. Every channel from your analog mixer can be recorded individually while maintaining a streamlined workflow for tracking, editing, and production.
Studio Bridge also allows recorded tracks to be routed back through your analog console for analog summing and outboard processing, giving engineers and producers the ability to transform digital recordings into rich, warm, and sonically detailed mixes.
Built for both studio and live recording environments, the system features 24 balanced analog line-level inputs and outputs via DB25 connections, ensuring seamless integration with professional recording consoles, patchbays, and external hardware.
Advanced DAW control functionality supports HUI and MCU protocols, enabling transport control and REC READY operation directly from your mixer. The included Settings Panel application with Meter Bridge provides intuitive system configuration and real-time signal monitoring.
For expanded workflow flexibility, Studio Bridge includes MIDI input and output for MIDI synchronization and USB MIDI interfacing, along with a dedicated 1/4-inch click output featuring onboard tempo control for performers, producers, and recording sessions.
Whether you're tracking a full band, recording live performances, mixing through an analog console, or building a hybrid studio environment, Studio Bridge delivers professional-grade connectivity, recording power, and uncompromising audio quality.

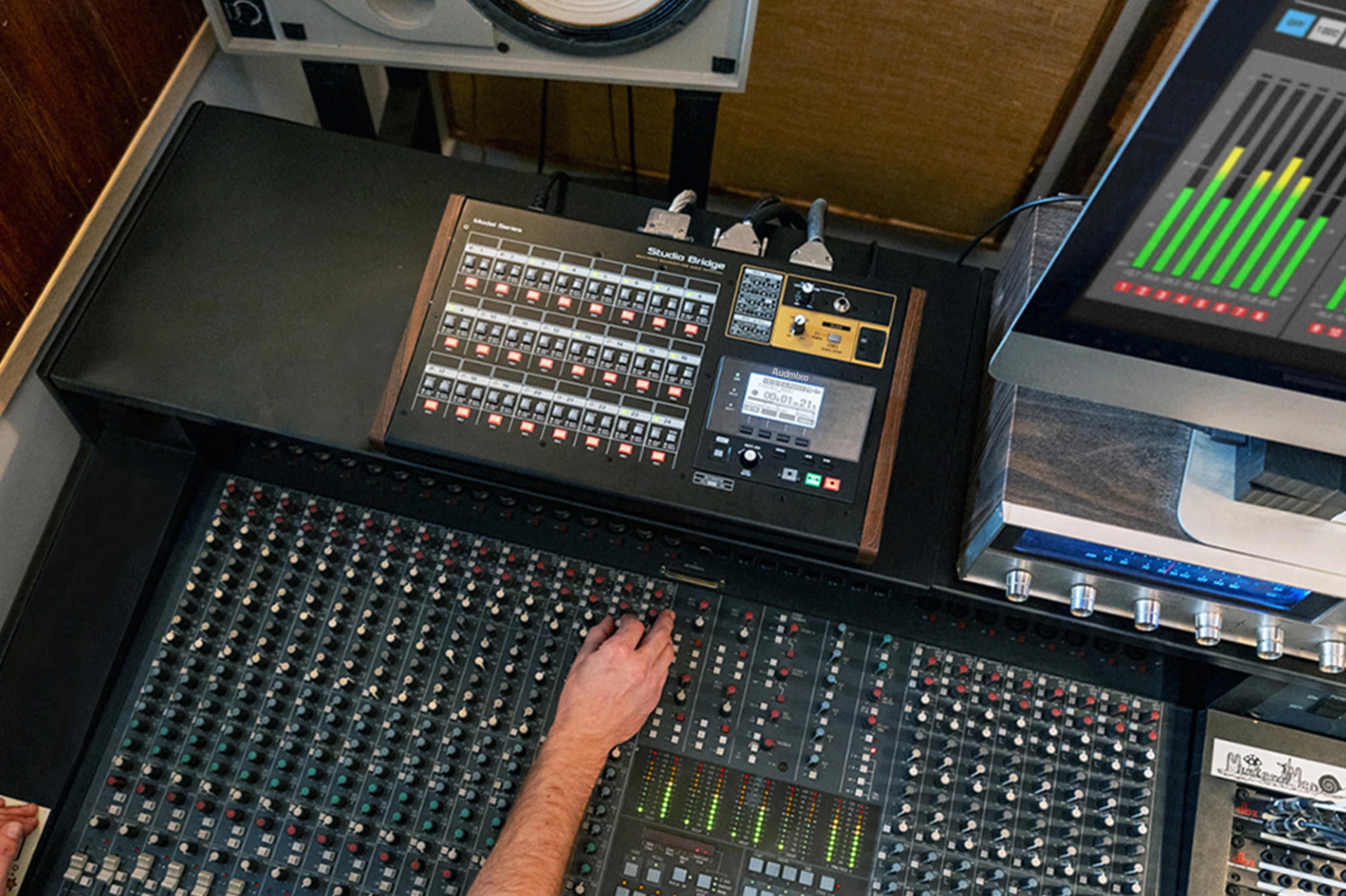

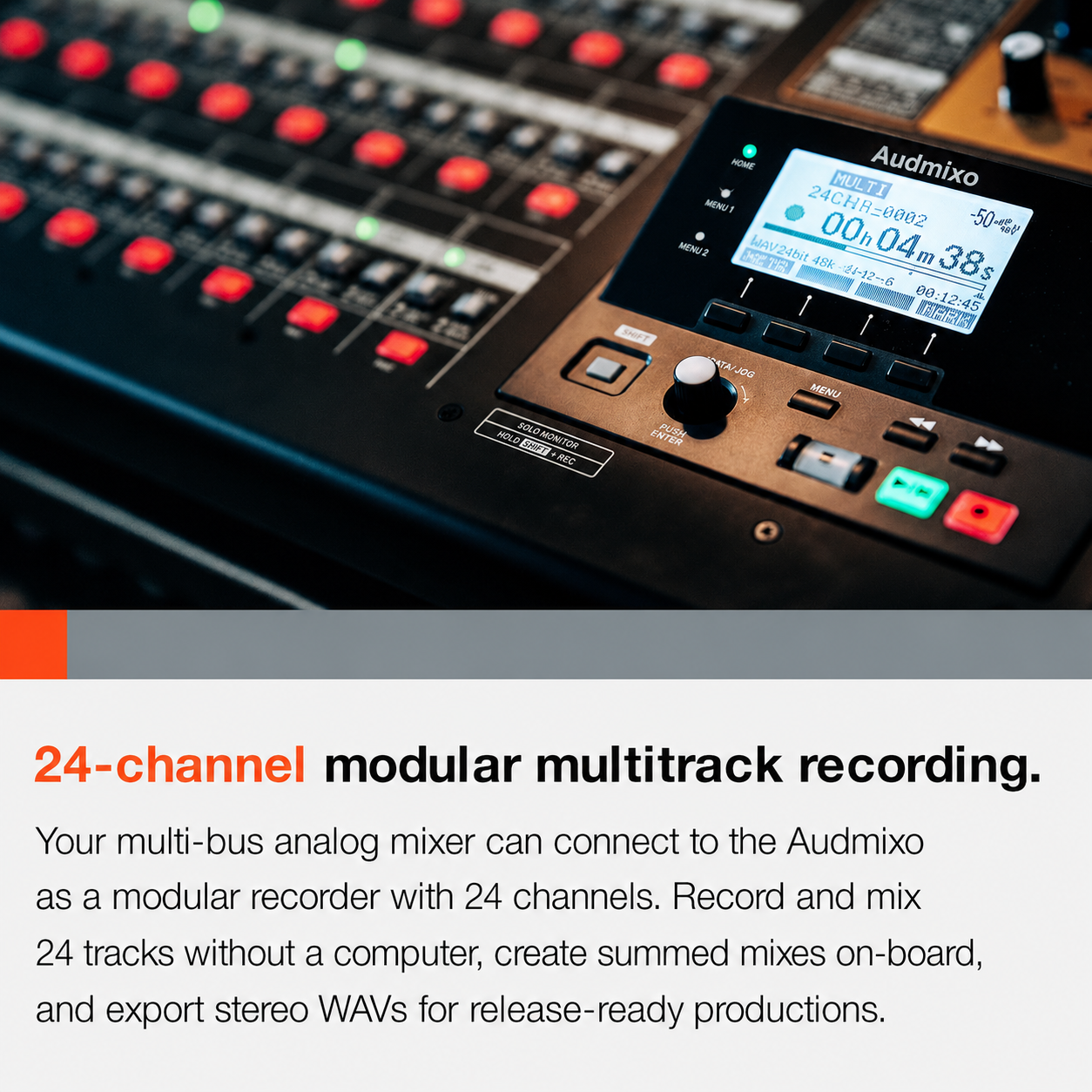

24-Channel Modular Multitrack Recorder DAWLess solution
Your analog mixer can connect to the Studio Bridge as a modular recorder with 24 channels. Easily record and mix 24 tracks with the Studio Bridge - no computer required. You can even sum your mixes to the onboard recorder and export stereo mix .wav files for release-ready productions.

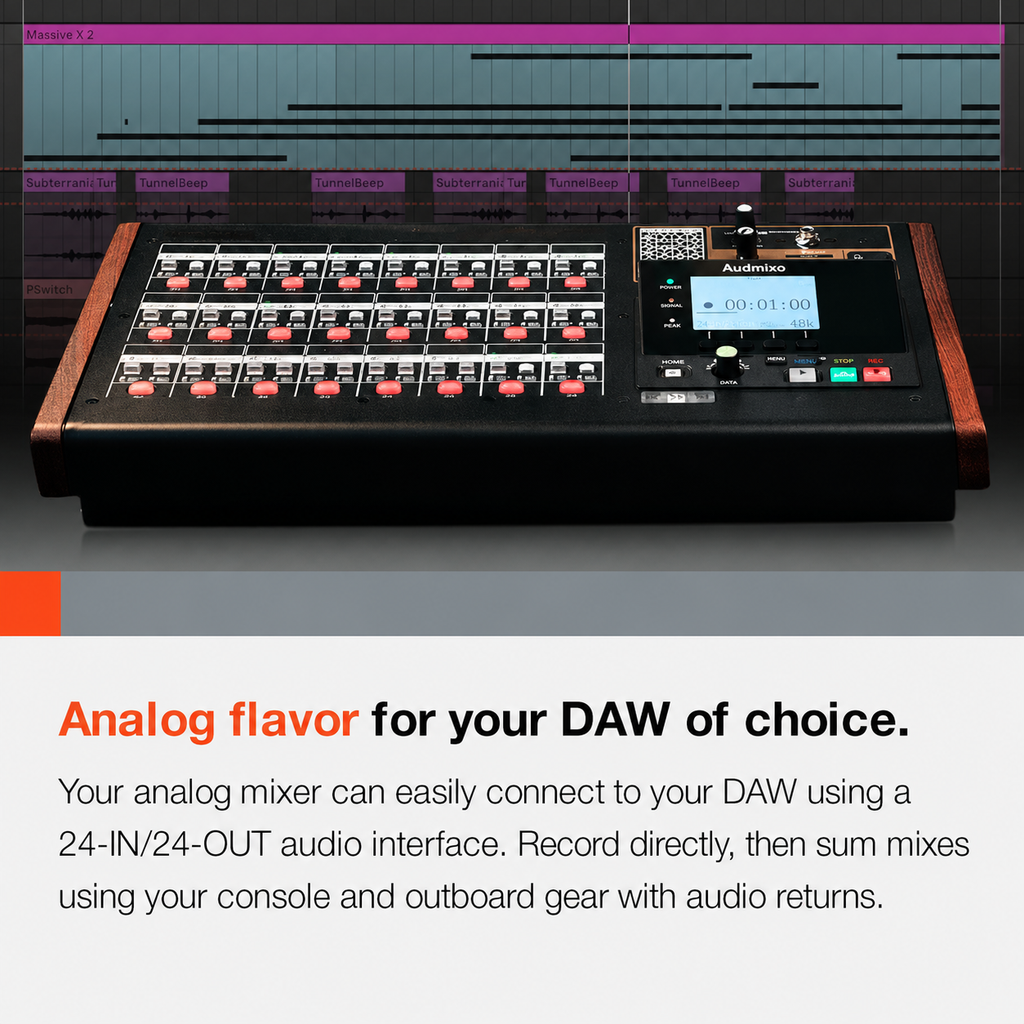

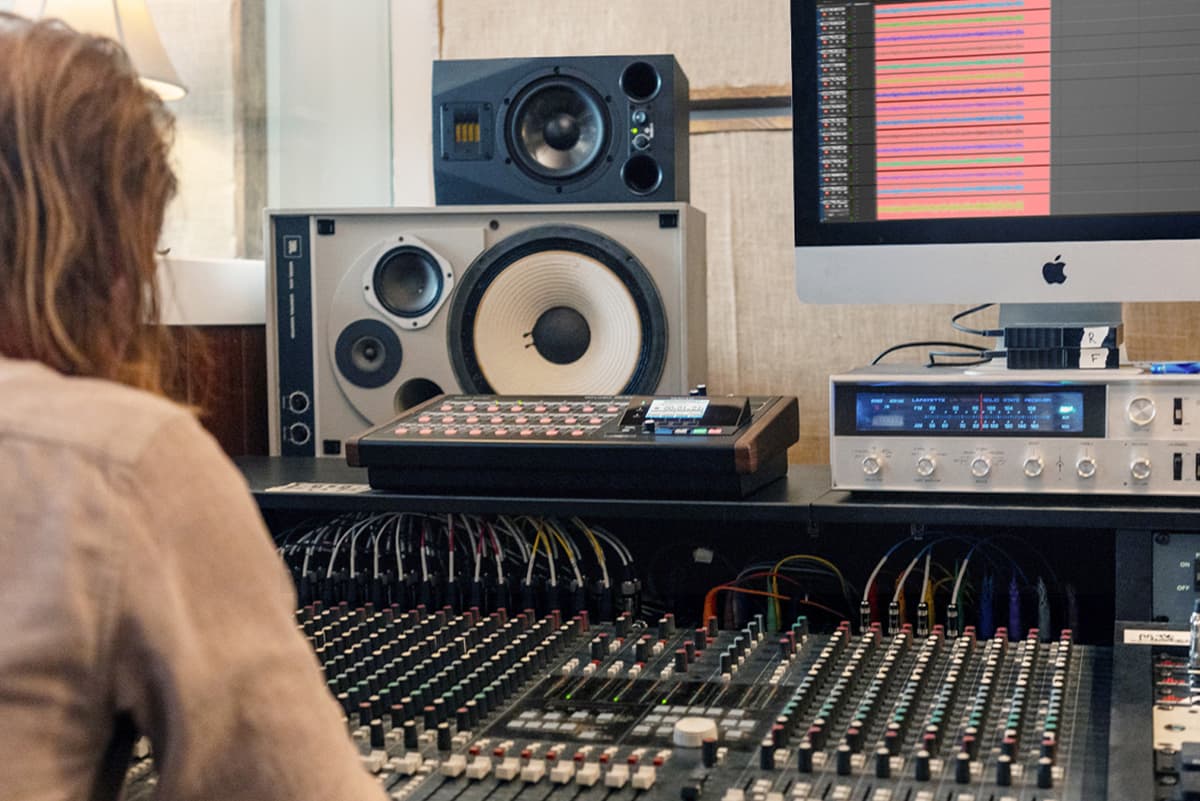

24-IN/24-OUT Audio/MIDI Interface for DAWs
AUDMIXO knows you want true analog flavor on your DAW recordings, and we’re here to help. Your analog mixer can easily connect to your DAW using the Studio Bridge as a 24-IN/24-OUT audio interface. You can record directly into any DAW and even create a summed mix using your console and outboard gear with audio returns.

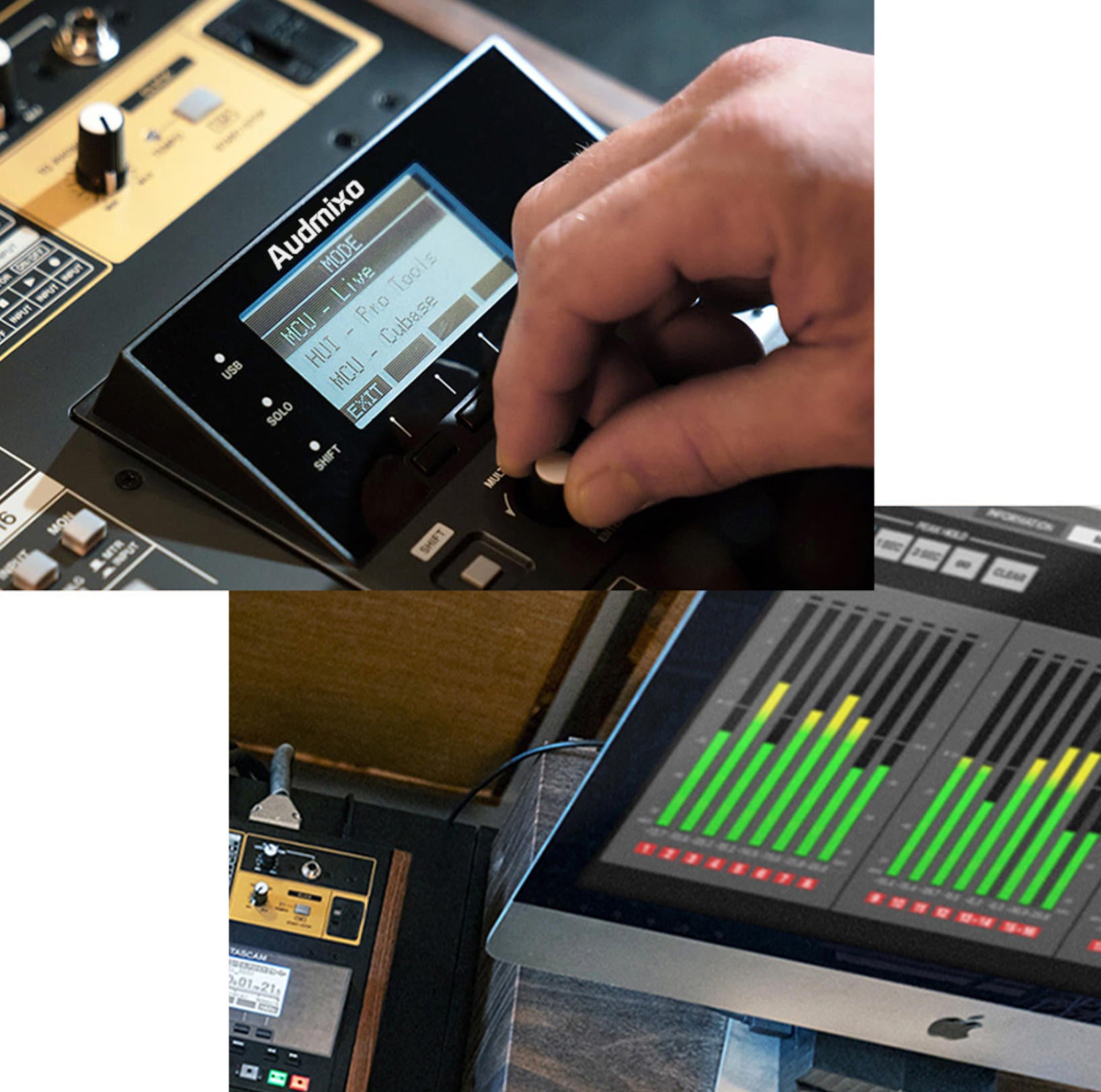

DAW Transport Controller and Dedicated Meter Bridge Software
Studio Bridge also works as a DAW transport controller. Rec/Play/Stop and Rec Ready buttons link directly to your DAW for ease of use. The control software includes a digital meter bridge which is available for PC /Mac to monitor audio levels on each channel, including the stereo master bus.
* DAW control operation has been confirmed with the following DAW software:
・Avid Pro Tools
・Apple Logic Pro
・MOTU Digital Performer
・Steinberg Cubase
・Ableton Live
・Cakewalk by BandLab
・PreSonus Studio One
・Cockos REAPER
・Steinberg Cubasis 3.3

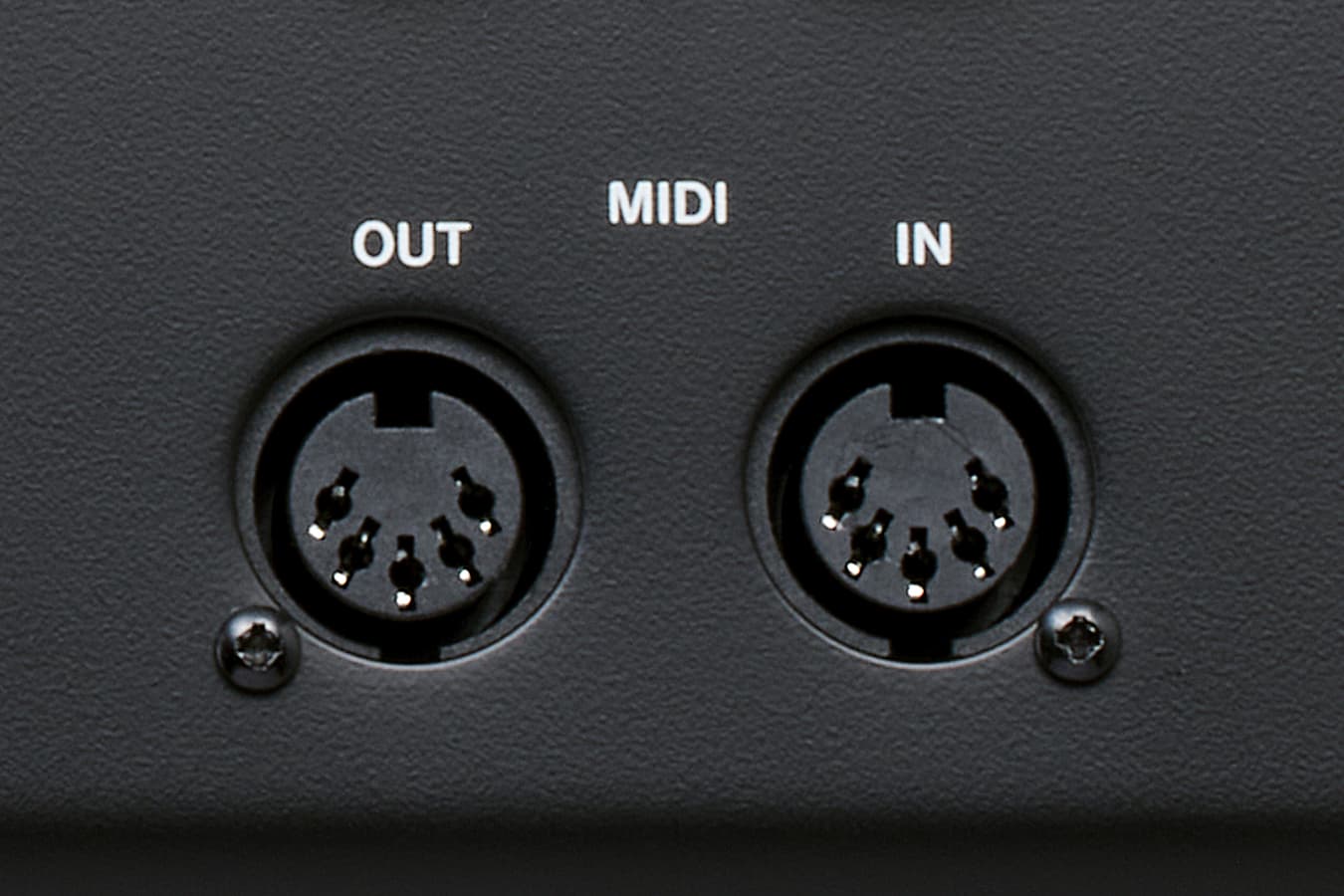

MIDI Synchronization for Your Sequencers
With MIDI In/Out ports, your favorite drum machines, sequencers, synths, and controllers can easily be integrated into any production.
Unlock your creativity with your go-to analog hardware and the Studio Bridge.
Live Recording Applications
In live environments the Studio Bridge becomes your mobile recording studio when connected to your mixing console. Just one piece of gear - no complex system, no computer required.
